Pagkain at Inumin- Shanghai Yinin Bearing & Transmission Company

Mga kaugnay na produkto

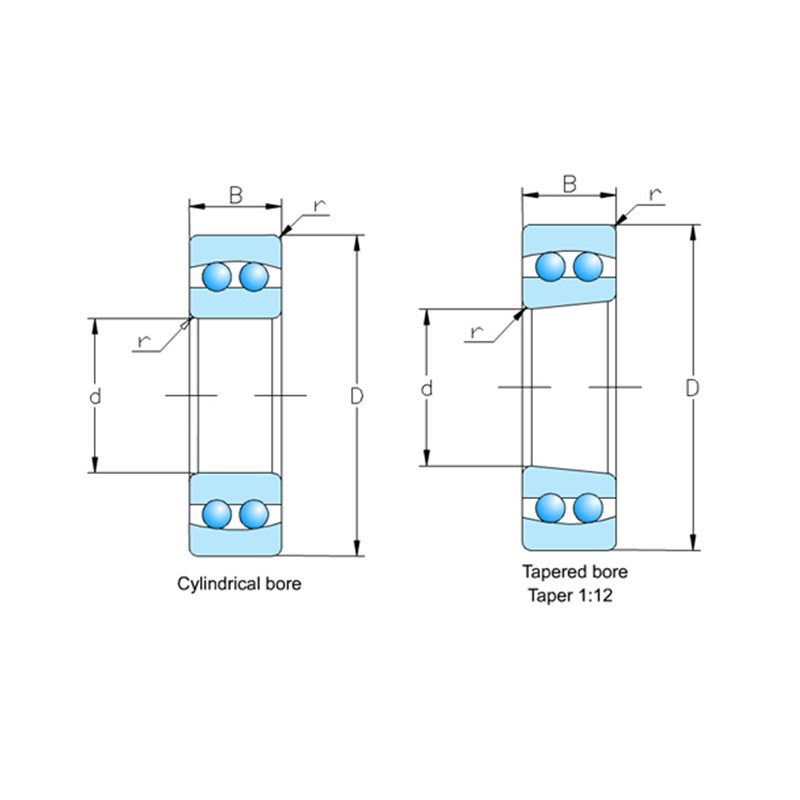

2200 serye

Pagtatalaga ng Pagtatalaga	Dimensyon （mm）				Pangunahing Mga Rating ng Pag -load (KN)		Bilis ng mga rating (rpm)		Timbang
Pagtatalaga ng Pagtatalaga	d	D	B	Rs min	Cr	Cor	Grease	Langis	(Kg)
2200	10	30	14	0.6	7.3	1.59	19000	23000	0.047
2201	12	32	14	0.6	7.6	1.73	17000	20000	0.051
2202	15	35	14	0.6	7.7	1.85	15000	18000	0.06
2203	17	40	16	0.6	9.8	2.41	13000	16000	0.088
2204	20	47	18	1	12.6	3.3	12000	14000	0.14
2204k	20	47	18	1	12.6	3.3	12000	14000	0.137
2205	25	52	18	1	12.3	3.45	10000	12000	0.157
2205k	25	52	18	1	12.3	3.45	10000	12000	0.153
2206	30	62	20	1	15.2	4.5	8600	10000	0.256
2206k	30	62	20	1	15.2	4.5	8600	10000	0.25
2207	35	72	23	1.1	21.5	6.6	7500	8800	0.392
2207k	35	72	23	1.1	21.5	6.6	7500	8800	0.382
2208	40	80	23	1.1	22.3	7.35	6700	7900	0.493
2208k	40	80	23	1.1	22.3	7.35	6700	7900	0.482
2209	45	85	23	1.1	23.2	8.15	6000	7100	0.54
2209k	45	85	23	1.1	23.2	8.15	6000	7100	0.528
2210	50	90	23	1.1	23.2	8.45	5500	6400	0.583
2210k	50	90	23	1.1	23.2	8.45	5500	6400	0.569
2211	55	100	25	1.5	26.5	9.9	5000	5800	0.787
2211k	55	100	25	1.5	26.5	9.9	5000	5800	0.769
2212	60	110	28	1.5	34	12.6	4600	5400	1.08
2212k	60	110	28	1.5	34	12.6	4600	5400	1.06
2213	65	120	31	1.5	43.5	16.4	4200	5000	1.44
2213k	65	120	31	1.5	43.5	16.4	4200	5000	1.41
2214	70	125	31	1.5	44	17.1	3900	4600	1.52
2215	75	130	31	1.5	44.5	17.8	3700	4300	1.58
2215k	75	130	31	1.5	44.5	17.8	3700	4300	1.54
2216	80	140	33	2	48.5	19.9	3400	4000	1.99
2216k	80	140	33	2	48.5	19.9	3400	4000	1.95
2217	85	150	36	2	58	23.6	3200	3800	2.54
2217k	85	150	36	2	58	23.6	3200	3800	2.49
2218	90	160	40	2	70	28.7	3100	3600	3.19
2218k	90	160	40	2	70	28.7	3100	3600	3.12
2219	95	170	43	2.1	83.5	34.5	2900	3400	3.89
2219k	95	170	43	2.1	83.5	34.5	2900	3400	3.8
2220	100	180	46	2.1	94	38.5	2700	3200	4.65
2220k	100	180	46	2.1	94	38.5	2700	3200	4.54
2221	105	190	50	2.1	109	45	2600	3100	6.07
2222	110	200	53	2.1	124	51.5	2500	2900	7.1
2222k	110	200	53	2.1	124	51.5	2500	2900	6.94

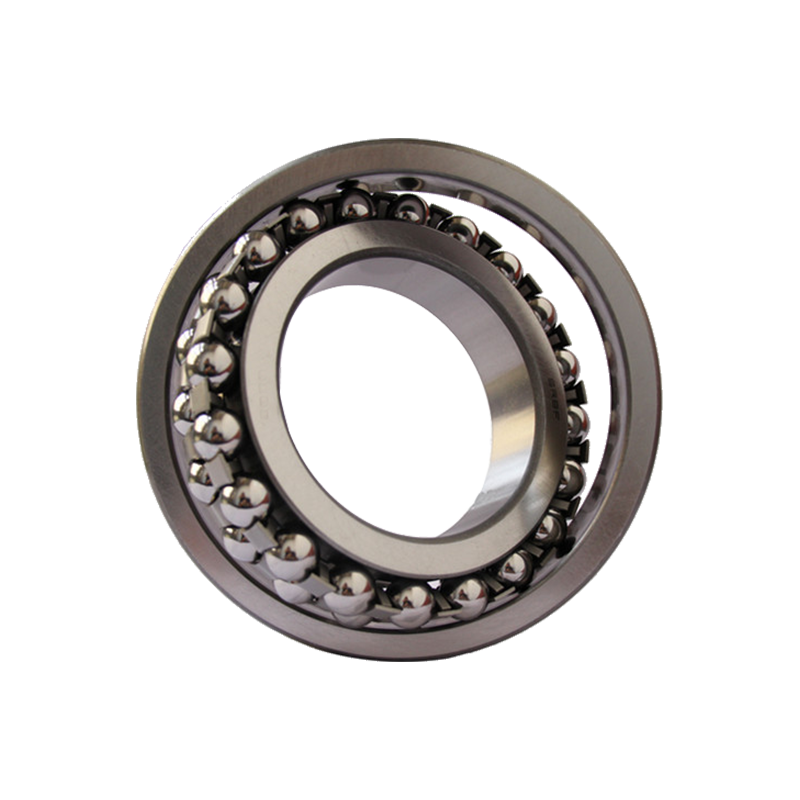

2200 serye

Ang 2200 serye na nakahanay sa bola ng bola ay isang katumpakan na mekanikal na sangkap na idinisenyo upang magdala ng mga naglo-load ng radial at isang maliit na halaga ng mga axial load. Mayroon ...

Mga Parameter ng Produkto $ $

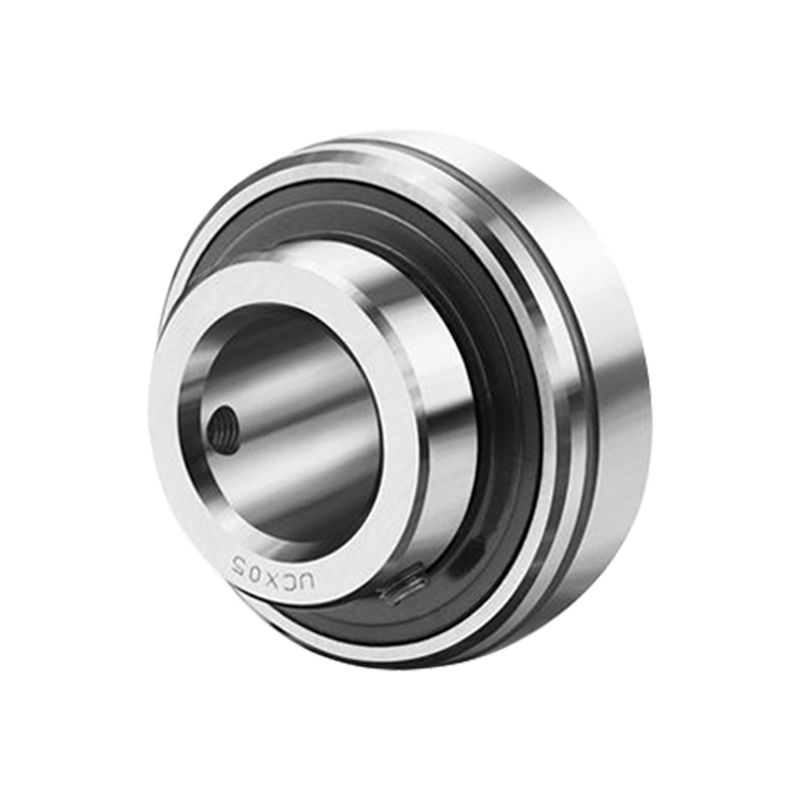

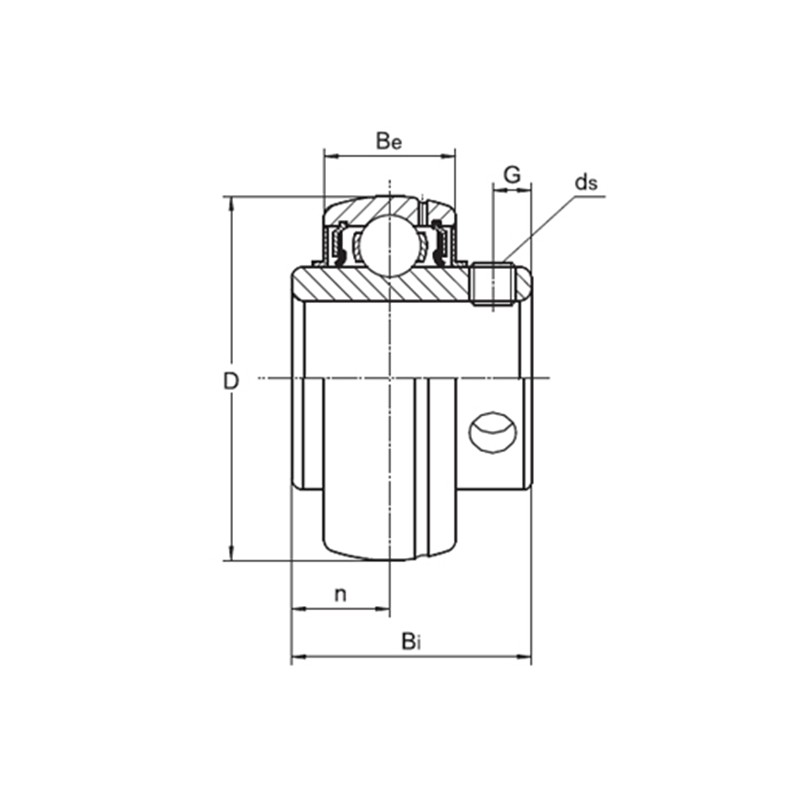

UCX Series

Magpadala ng pagtatanong

Nagdadala ng No.	d		Mga Dimensyon （mm）
Nagdadala ng No.	(mm)	(sa.)	D	Bi	Maging	n	m	G	ds
UCX05-14	22.225	0.875	62	38.1	19	15.9	22.2	6	1/4-28Unf
UCX05	25		62	38.1	19	15.9	22.2	6	M6X1.0
UCX05-16	25.4	1	62	38.1	19	15.9	22.2	6	1/4-28Unf
UCX06	30		72	42.9	20	17.5	25.4	6.5	M8x1.0
UCX06-19	30.163	1.1875	72	42.9	20	17.5	25.4	6.5	5/16-24Unf
UCX06-20	31.75	1.25	72	42.9	20	17.5	25.4	6.5	5/16-24Unf
UCX07-20	31.75	1.25	80	49.2	21	19	30.2	8	5/16-24Unf
UCX07-22	34.925	1.375	80	49.2	21	19	30.2	8	5/16-24Unf
UCX07	35		80	49.2	21	19	30.2	8	M8x1.0
UCX07-23	36.513	1.4375	80	49.2	21	19	30.2	8	5/16-24Unf
UCX08-24	38.1	1.5	85	49.2	22	19	30.2	8	5/16-24Unf
UCX08	40		85	49.2	22	19	30.2	8	M8x1.0
UCX09-27	42.863	1.6875	90	51.6	24	19	32.6	10	3/8-24Unf
UCX09-28	44.45	1.75	90	51.6	24	19	32.6	10	3/8-24Unf
UCX09	45		90	51.6	24	19	32.6	10	M10X1.25
UCX10-31	49.213	1.9375	100	55.6	25	22.2	33.4	10	3/8-24Unf
UCX10	50		100	55.6	25	22.2	33.4	10	M10X1.25
UCX10-32	50.8	2	100	55.6	25	22.2	33.4	10	3/8-24Unf
UCX11-32	50.8	2	110	65.1	27	25.4	39.7	10	3/8-24Unf
UCX11	55		110	65.1	27	25.4	39.7	10	M10X1.25
UCX11-35	55.563	2.1875	110	65.1	27	25.4	39.7	10	3/8-24Unf
UCX11-36			110	65.1	27	25.4	39.7	10	3/8-24Unf
UCX12-36	57.15	2.25	120	65.1	28	25.4	39.7	10	3/8-24Unf
UCX12	60		120	65.1	28	25.4	39.7	10	M10X1.25
UCX12-38	60.325	2.375	120	65.1	28	25.4	39.7	10	3/8-24Unf
UCX12-39	61.913	2.4375	120	65.1	28	25.4	39.7	10	3/8-24Unf
UCX13-40	63.5	2.5	125	74.6	30	30.2	44.4	12	7/16-20unf
UCX13	65		125	74.6	30	30.2	44.4	12	M12X1.5
UCX14-44	69.85	2.75	130	77.8	30	33.3	44.5	12	7/16-20unf
UCX14	70		130	77.8	30	33.3	44.5	12	M12X1.5
UCX15-47	74.613	2.9375	140	82.6	33	33.3	49.3	14	7/16-20unf
UCX15	75		140	82.6	33	33.3	49.3	14	M12X1.5
UCX15-48	76.2	3	140	82.6	33	33.3	49.3	14	7/16-20unf
UCX16-50	79.375	3.125	150	85.7	35	34.1	51.6	14	7/16-20unf
UCX16	80		150	85.7	35	34.1	51.6	14	M12X1.5
UCX17-52	82.55	3.25	160	96	37	39.7	56.3	15	1/2-20UNF
UCX17	85		160	96	37	39.7	56.3	15	M12X1.5
UCX18-56	88.9	3.5	170	104	39	42.9	61.1	16	1/2-20UNF
UCX18	90		170	104	39	42.9	61.1	16	M14x1.5
UCX20	100		190	117.5	44	49.2	68.3	18	M16x1.5
UCX20-64	101.6	4	190	117.5	44	49.2	68.3	18	5/8-18Unf $ $

UCX Series

Ang UCX Series Insert Bearings ay mataas na pagganap ng mga rolling bearings na idinisenyo upang magbigay ng mahusay na suporta at tibay para sa iba't ibang mga pang -industriya na aplikasyon....

Mga Parameter ng Produkto $ $

Serye ng MRC

Magpadala ng pagtatanong

Item Hindi.	D1	D2	H	H1	H2	d	Pansinin
MRC1238	37.8	35.6	15	10	5	12.2	Na may katumpakan na tindig ng bola
MRC1238	38	35	15	10	5	12.2	Na may katumpakan na tindig ng bola
MRC1242	42	38	-	-	-	12.2	Na may katumpakan na tindig ng bola
MRC1250	50.8	48	18.5	12.8	5.7	12.2	Na may katumpakan na tindig ng bola
MRC1259	59	55	20	14	6	12.2	Na may katumpakan na tindig ng bola
MRC1260	60	56	20	14	6	12.2	Na may katumpakan na tindig ng bola
MRC1559	59	55	20	14	6	15.2	Na may katumpakan na tindig ng bola
MRC1560	60	56	20	14	6	15.2	Na may katumpakan na tindig ng bola
MRC2075	75	71	-	-	-	20	Na may katumpakan na bola na nagdadala ng $ $

Serye ng MRC

Ang MRC Series conveyor roller tindig ay isang mataas na pagganap na pang-industriya na tindig na partikular na para sa mga sistema ng conveyor upang madagdagan ang kahusayan at tibay. Ang mga ito ...

Mga Parameter ng Produkto $ $
